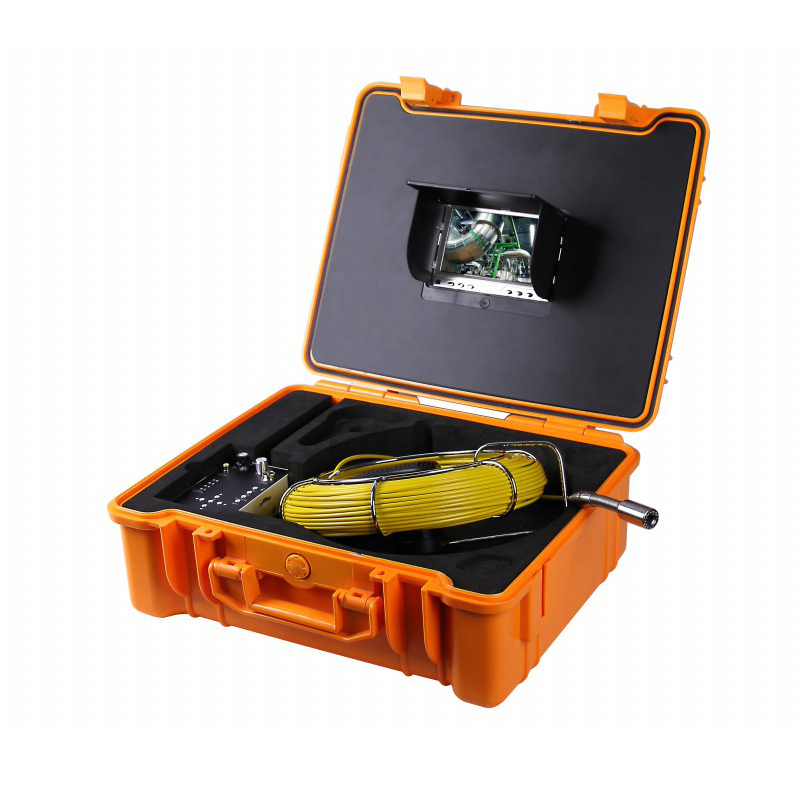

YY110-7G

  • Product Details:
  • 1. Camera size:23mm x 120mm, head :45mm
  • 2. 7" color digital screen
  • 3. Camera material: High strength stainless steel 304
  • 4. Sensor: 1/3 inch CCD or CMOS
  • 5. Camera cable length: 20/30/40/50 meters
  • 6. Waterproof class :IP68
  • 7. Support for Part Replacement & Fast Customer Service.
  • 6. Waterproof class :IP68
  • 7. Support for Part Replacement & Fast Customer Service.
  • EMAIL   INQUIRY

CR110-7G 15.jpg

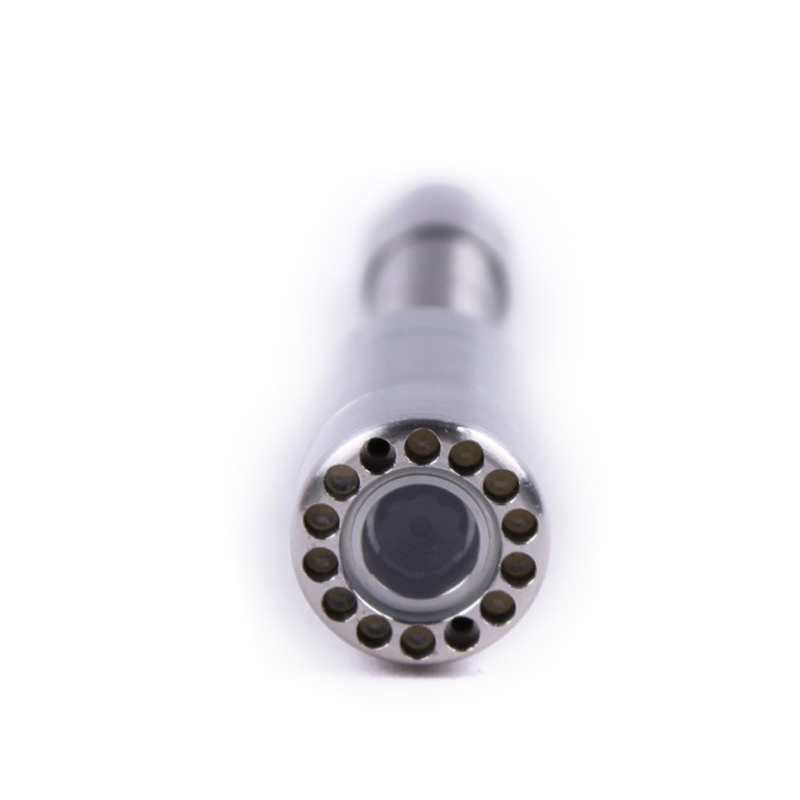

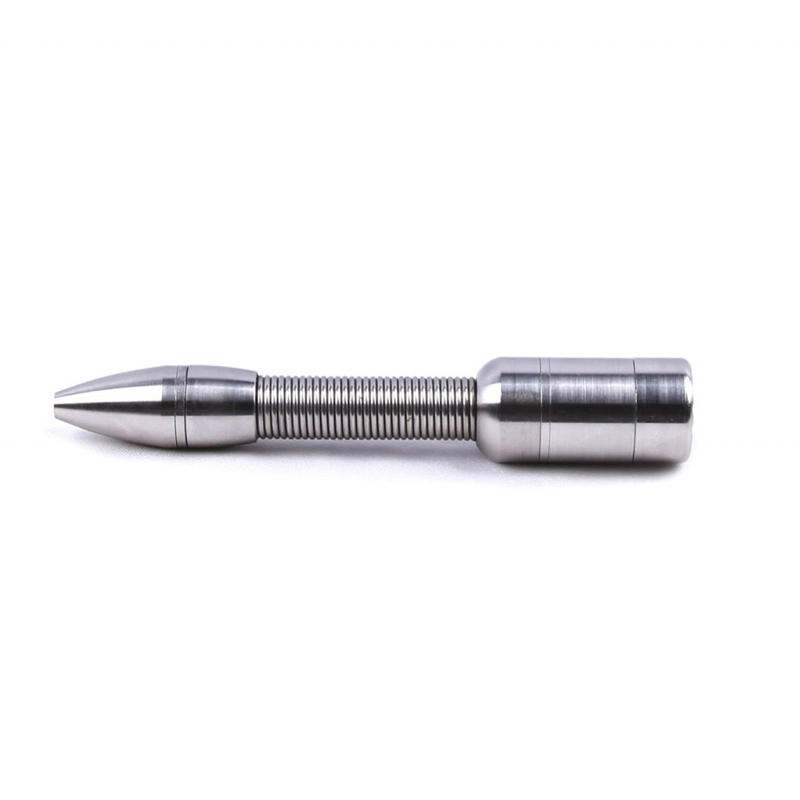

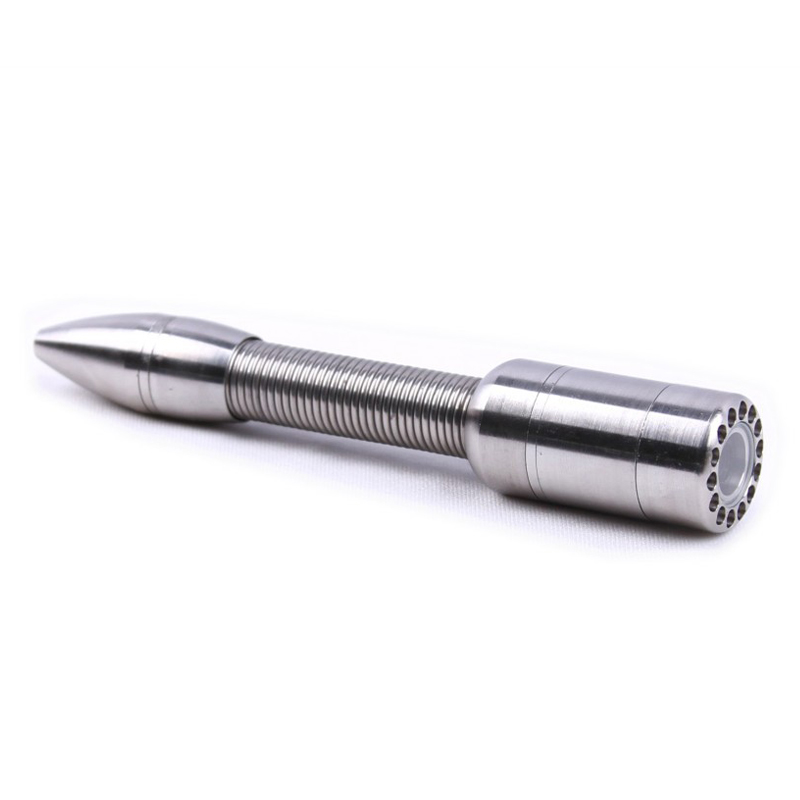

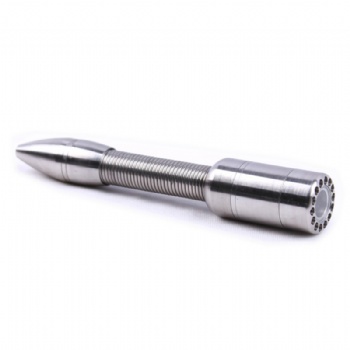

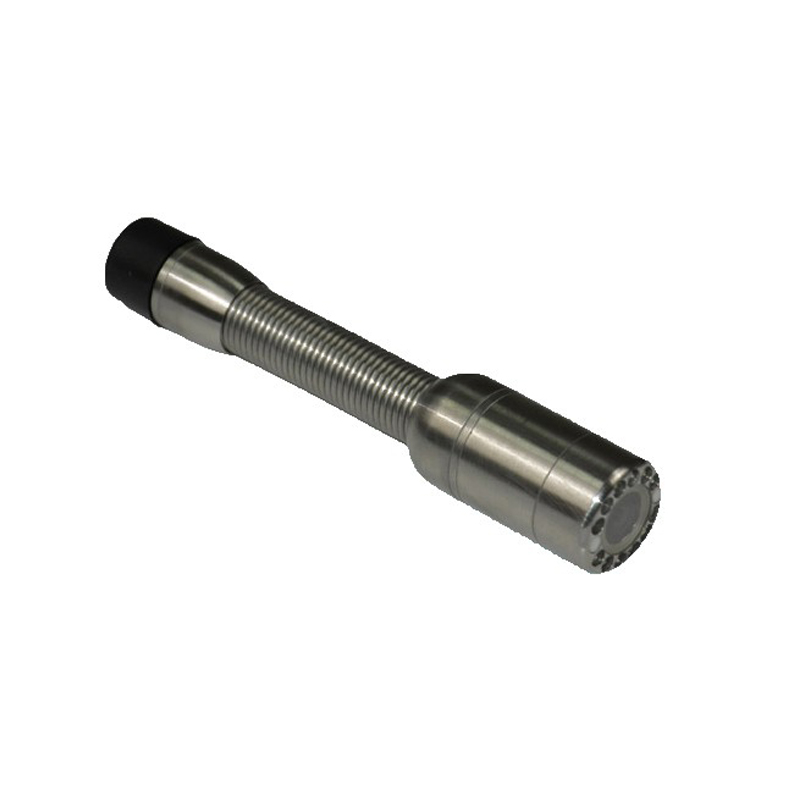

Camera:

1. Camera size: 23mm x 120mm, head :45mm

2. Camera material: high strength stainless steel 304

3. Camera lens material: tempered glass

4. Sensor: 1/3 inch CCD or CMOS

5. Camera Angle: 120°

6. Fill light: 12 white light

7. The white light is adjustable

8. Camera cable length: 20/30/40/50 meters

9. Camera working current: 100MA

10. Camera voltage: DC 12V

11. Waterproof rating :IP68

12. Working environment: use in the pipeline; Operating temperature :-10°C-50°C

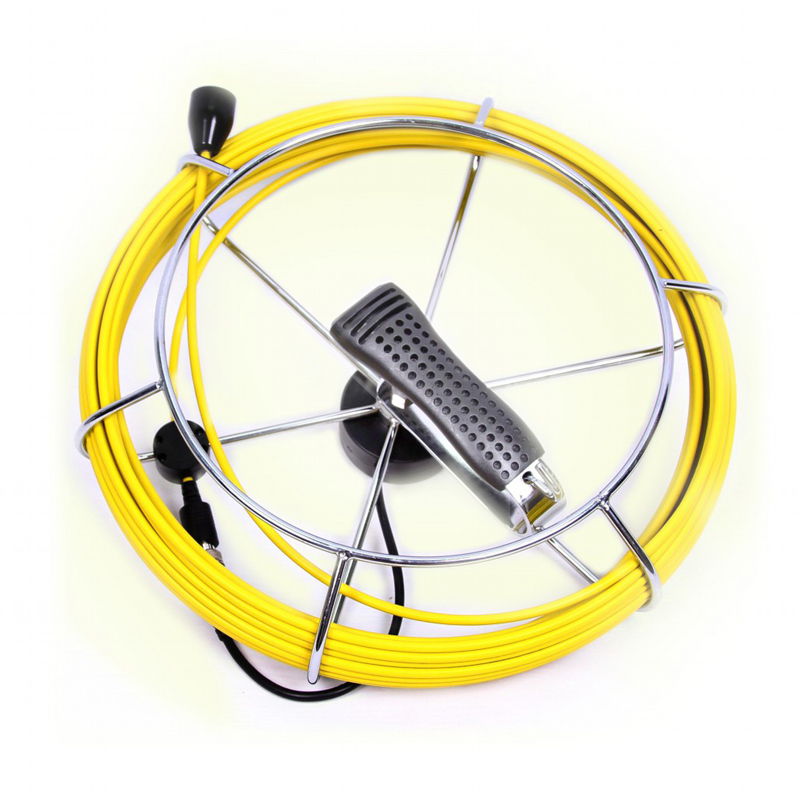

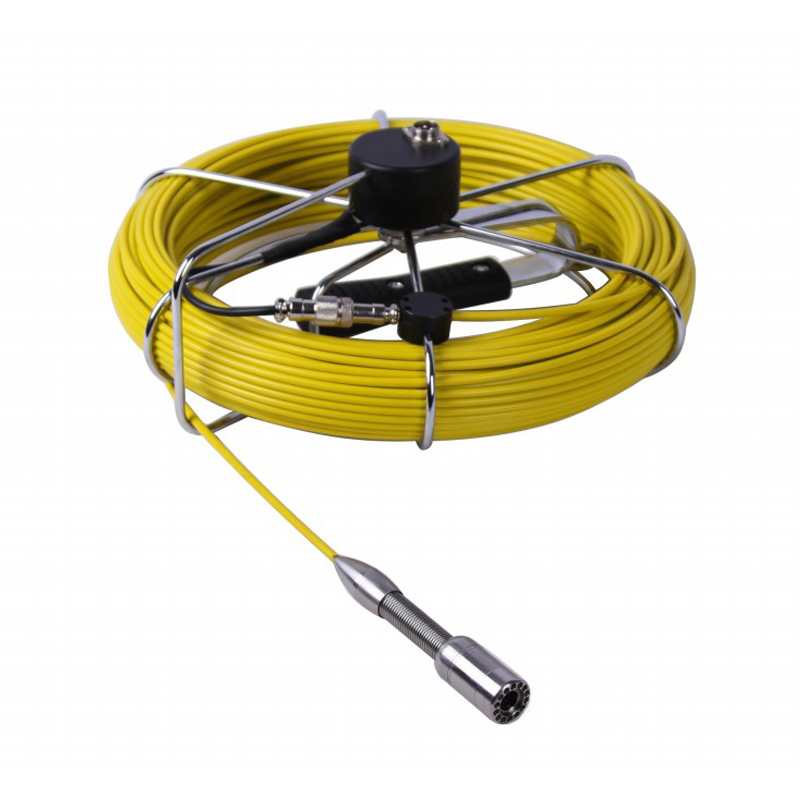

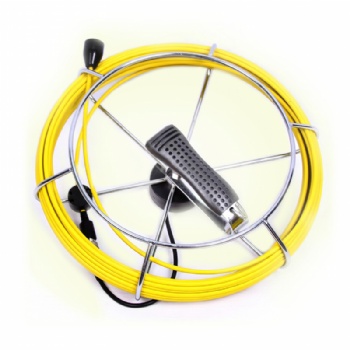

Reel:

1. Wire wheel size: 320MM(diameter)X110(height)

2. Wire material: glass fiber

3. Line length: 20m / 30m / 40m / 50m (optional)

4. Glass fiber diameter: 4.9MM

5. Glass fiber color: yellow

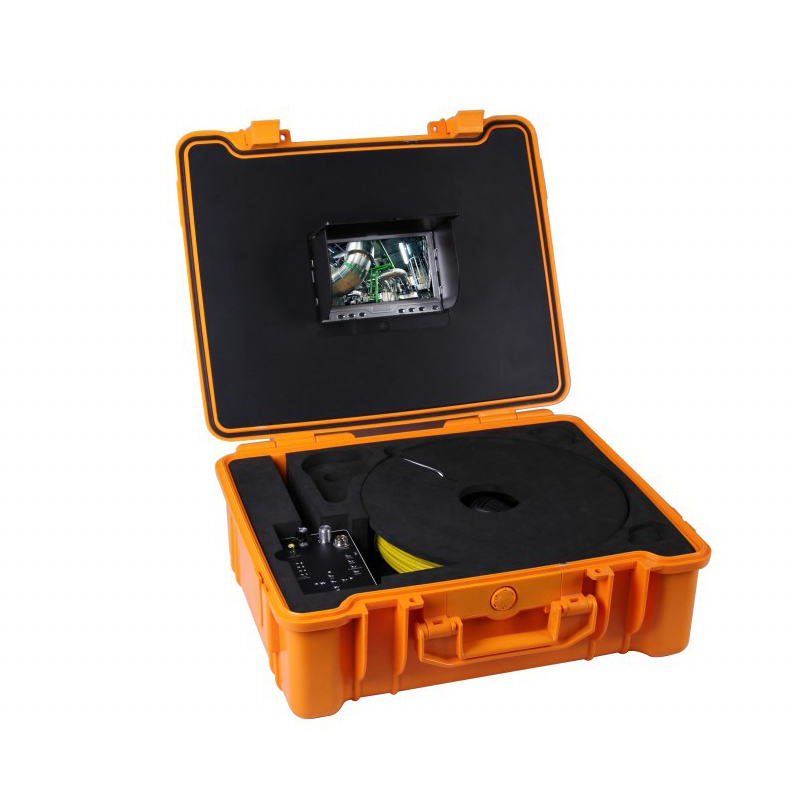

Video recorder specification:

1. Power supply voltage: 12V

2. Working current: 200MA

3. Storage capacity: SD card (Max support: 32G)

4. Electronic clock and digital calendar

5. Video image: 720X576

6. Capture and video function

7. Video format: AVI

8. With recording function

9. Dual headphone output
