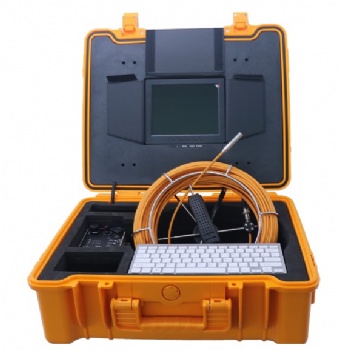

YY110-7DH

  • Product  Description:
  • 1. Camera size:23mm x 120mm, head :45mm
  • 2. Cable:length 20m.  diameter is 5 mm
  • 3. 7 inch LCD display
  • 4. Hd DVR video storage control box
  • 5. Built-in 4500MAH 18650 lithium battery
  • 6. Support for Part Replacement & Fast Customer Service .
  • EMAIL   INQUIRY



Cable:

1. Camera size: 23mm x 120mm, head :45mm

2. Camera material: high strength stainless steel 304

3. Camera lens material: tempered glass

4. Sensor: 1/3 inch CCD or CMOS

5. Camera Angle: 120°

6. Fill light: 12 white lights                                                                                                                                                                                                                                      7.  The white light is adjustable

8. Camera cable length: 20/30/40/50 meters (optional, more than

     50 meters need to be customized)

9. Camera working current: 100MA

10. Camera voltage: DC 12V

11. Waterproof rating :IP68

12. Working environment: use in the pipeline; Operating temperature :-10°C-50°C


Turntable:

1. Wire wheel size: 290MM(diameter)X70(height)

2. Wire material: glass fiber

3. Line length: 20 meters / 30 meters / 40 meters / 50 meters (optional, more

    than 50 meters need to be customized)

4. Glass fiber diameter: 4.9MM

5. Glass fiber color: yellow


Hd built-in DVR:

1. 7 inch LCD high brightness high definition screen

2. Hd video system, built-in 8G SD card

3. Video output

4. 12V DVR current 200mA

5. Storage medium SD 1-32GB (optional)
