YY110-7D1512TR

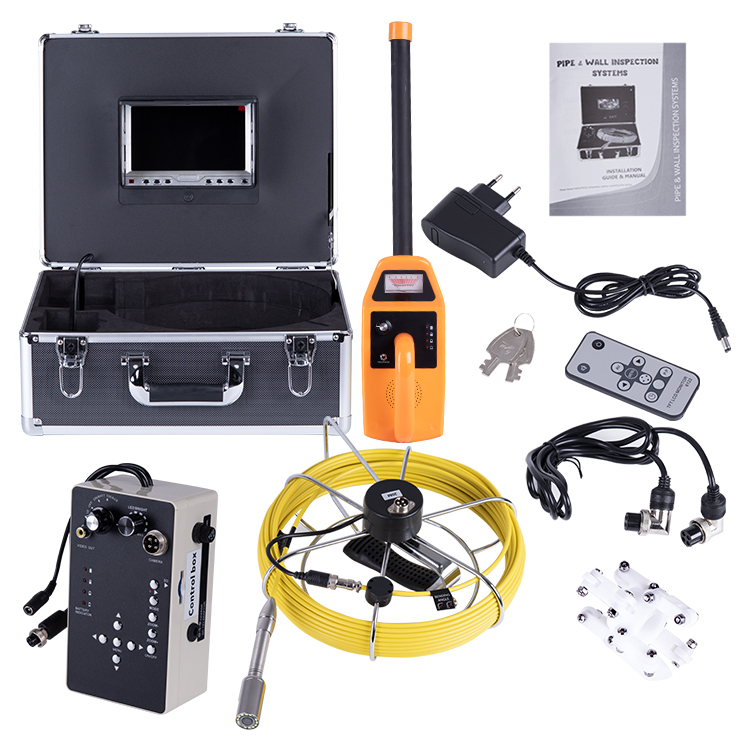

  • 1.Camera size:23mm x 120mm, head :45mm.
  • 2.Display size: 7 inch LCD display screen .
  • 3.Turntable: 20 m /30 m /40 m, diameter 5 mm line
  •    (other line lengths need to be customized) .

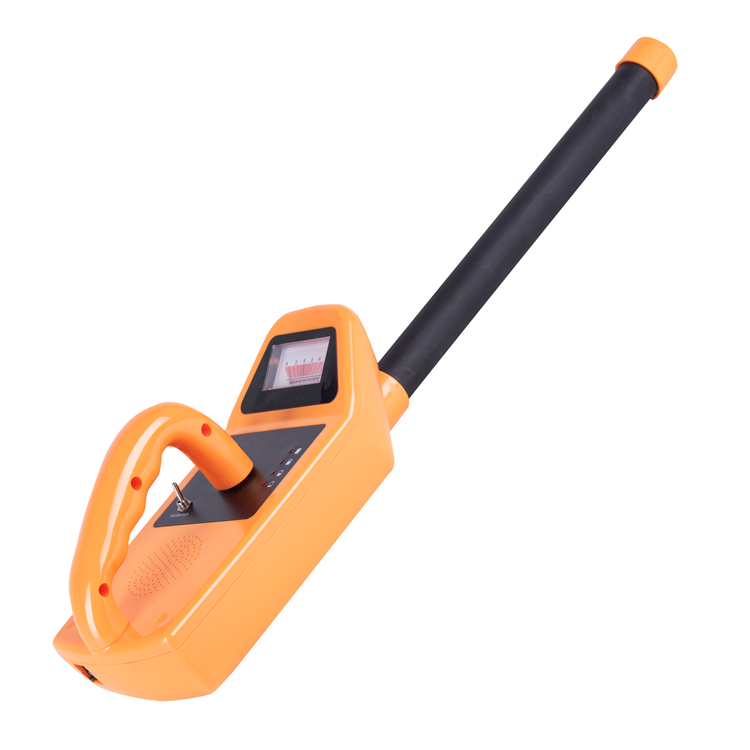

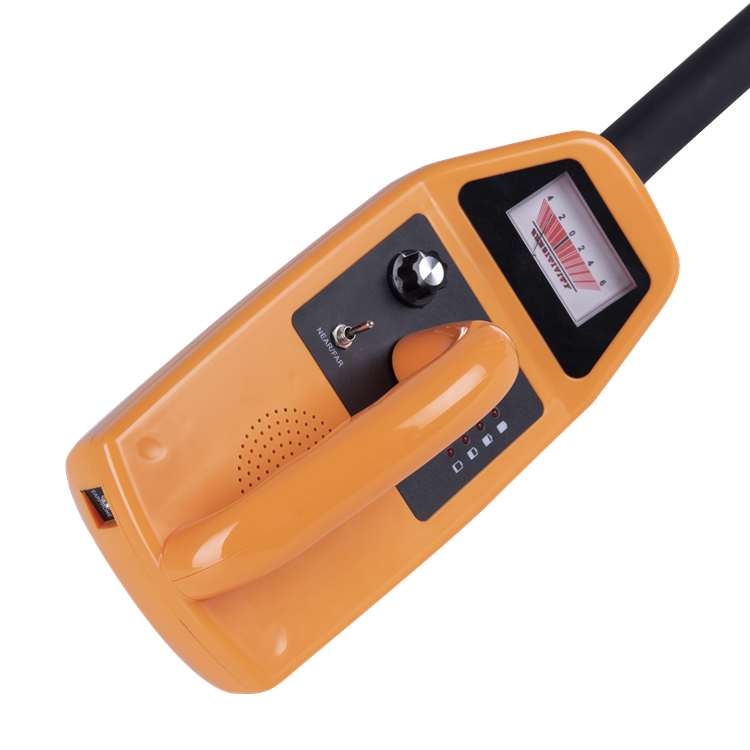

  • 4.Frequency: Self level head with 512 Hz Sonde.
  • 5.Support for Part Replacement & Fast Customer Service .
  • EMAIL   INQUIRY






Monitor specification:

1.  7" Color monitor

2.  monitor Total Pixels: 800(H) X 480(V)

3.  monitor power supply:  DC 12V

4.  OSD language:  English (10 languages available)

5.  up, down  left, right adjustable

6.  16:9  model

7.  Built in sunshade

8.  Operating Temperature: -20°C-60°C

9.  Portable aluminum case

10.  Battery: 12V 4000MAH     rechargeable Li –ion or Lead-acid

           Used time :   7  hours

11.  Charger: Input: AC90-240V , output: DC 12V    1000MA

12.  SKIDS size:  SKIDS1:  Φ60MM

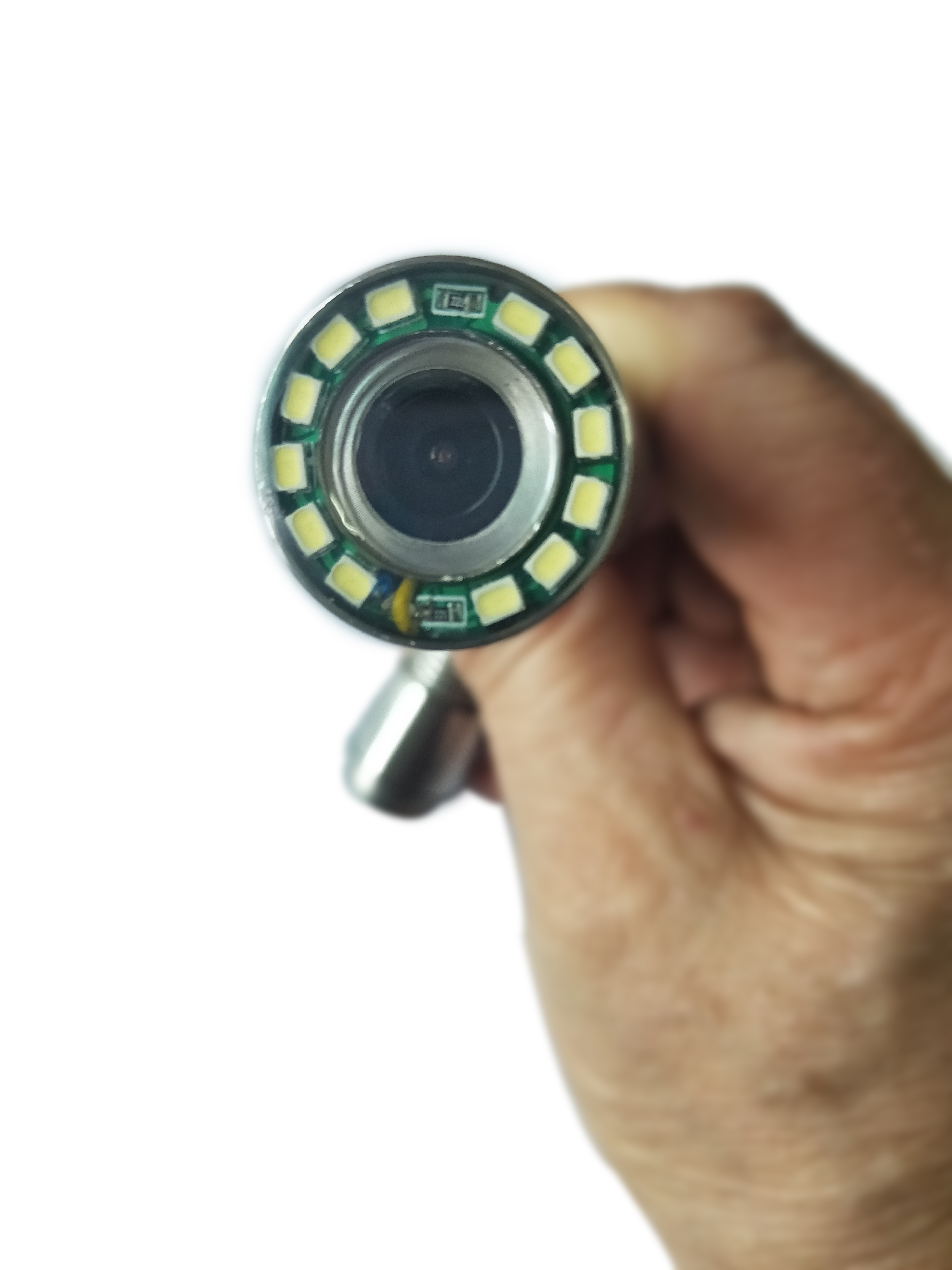

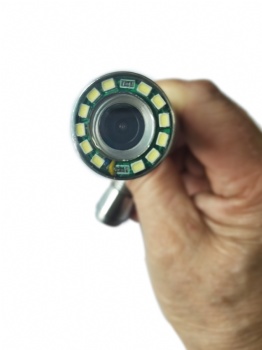

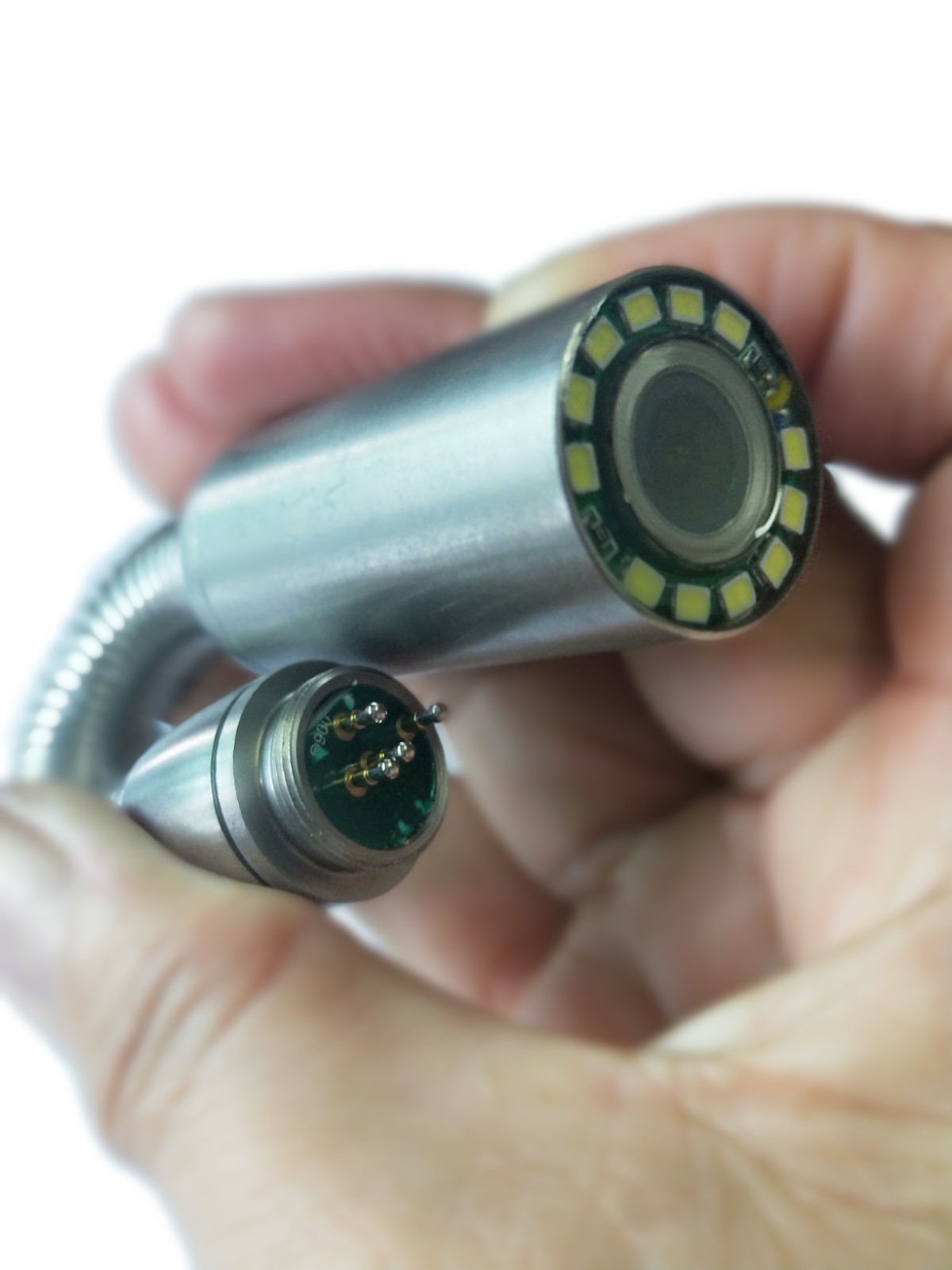

Camera specification:

1. camera size: 23mm x 126mm

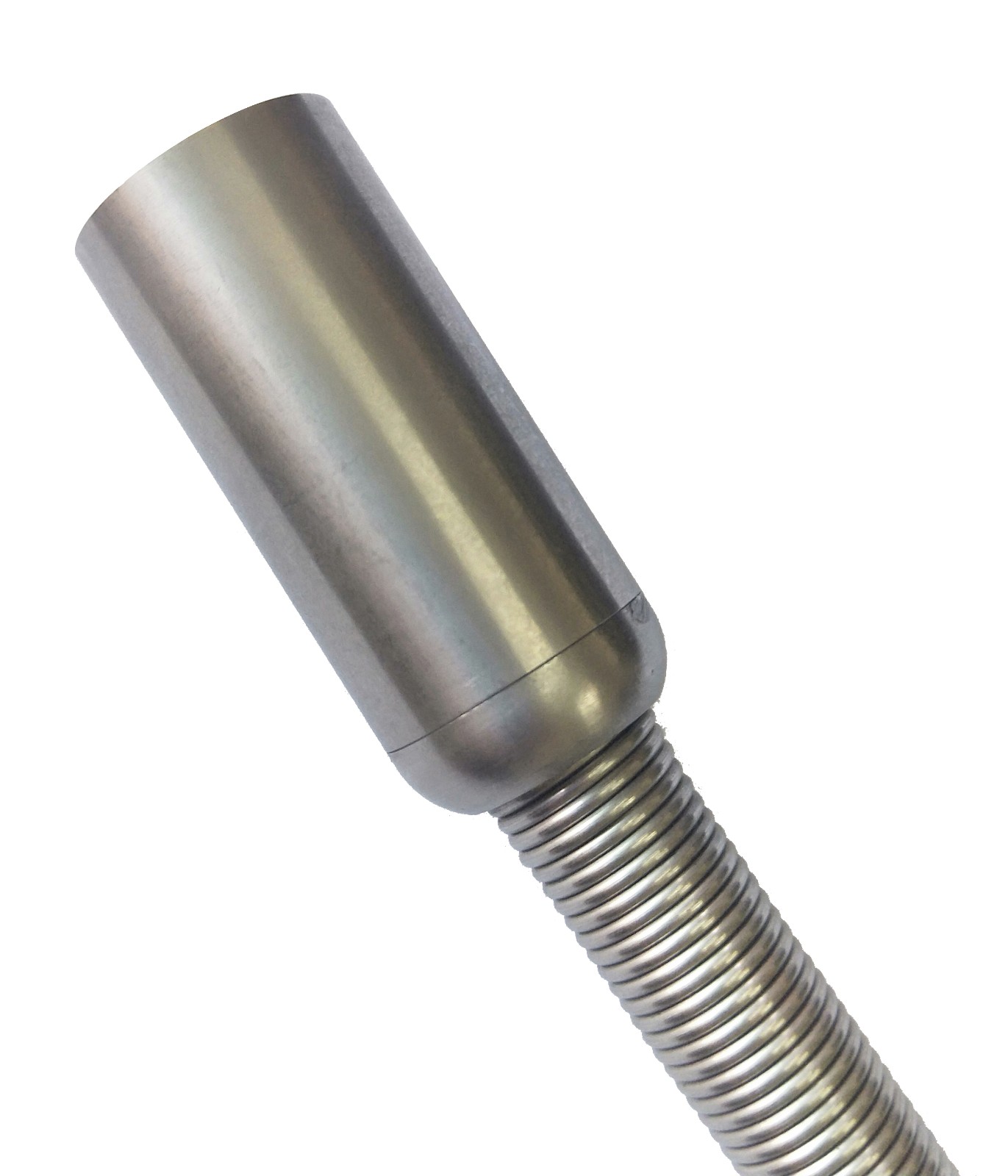

2.Camera case material: stainless steel 304

3. Camera glass material: sapphire glass

4. sensor size: 1/3 inch CCD or CMOS

5.Total Pixels: 800 TVL HD

6. view angle: 120°

7. camera led light: 12PCS white LEDS

8. LEDS  adjustable

9. Special gold point touch connector

10. Cable length: 20/30/40  meters

11. camerawork current: 100MA

12. camera power supply:  DC 12V

13. waterproof: IP68

14. Work temperature: -10°C-50°C

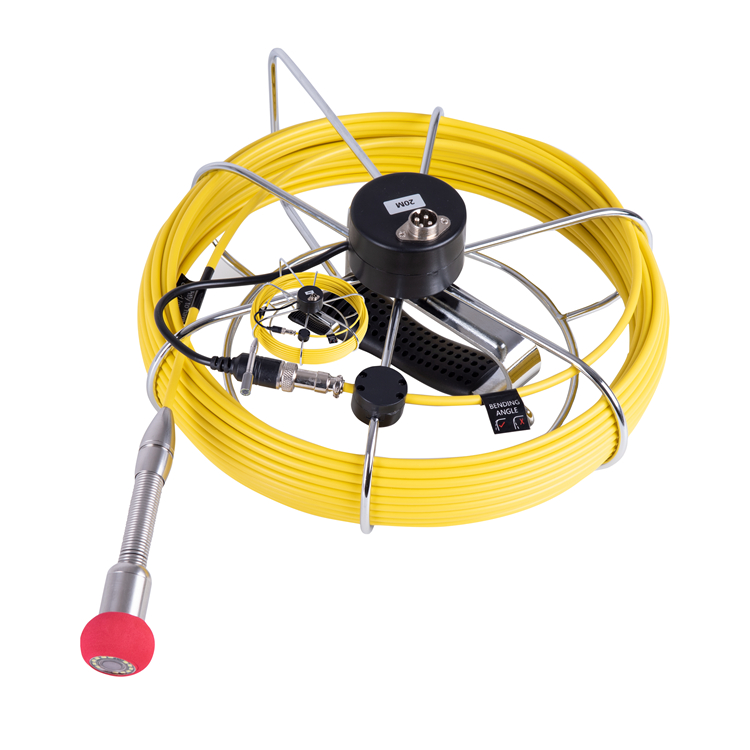

Cable wheel:


1. Wire wheel size: 290MM(diameter)X110(h)

2. Wire material: fiberglass rod

3. Fiberglass length: 20M / 30M / 40M ( optional)

4. Fiberglass diameter: 4.8MM

5. Fiberglass color: yellow

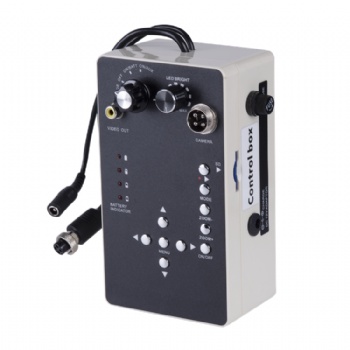

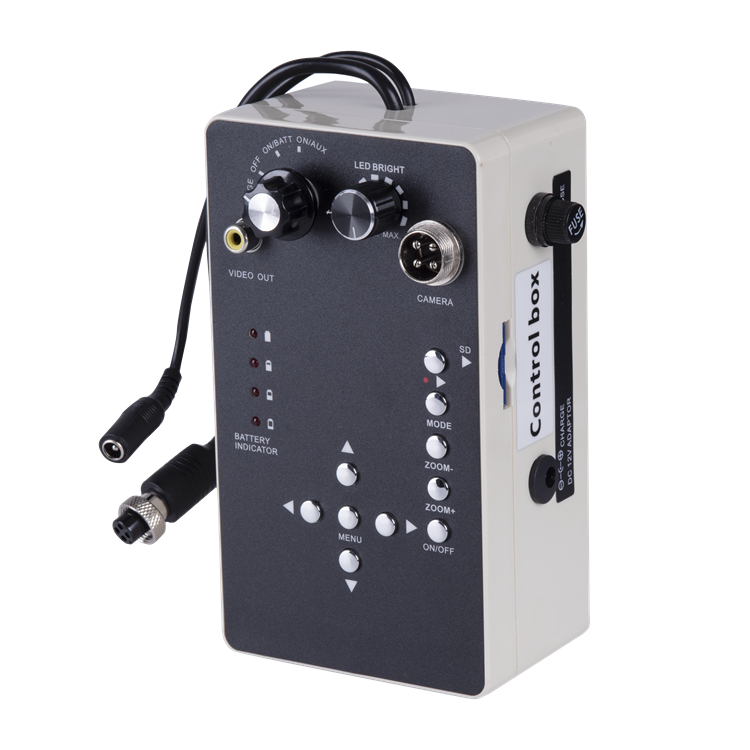

DVR specification:

1. DVR power supply:   12V

2. DVR work current:  200MA

3. storage medium: SD card (max 16G)

4. dagital clock and dagital calendar

5. DVR Total Pixels:  720X576
